Active HD Video Balun
Model: HDAB01
HD CCTV ACTIVE BALUN for 1080p/720p AHD/HD-TVI/HD-CVI and Analog CCTV Cameras
Transmit 1080p/720p/960H HD CCTV video signal using UTP CAT5/6 cable.
Features:
- Compatible with 1080p and 720p AHD, HD-TVI, HD-CVI and 960H CVBS analog cameras
- The set includes: transmitter x1 and receiver x1
- Transmitter and receiver unit requires DC12V each (power supply sold separately)
- 60dB crosstalk and noise inmunity
- Exceptional interference rejection
- Built-in TVS for surge protection
- ABS engineering plastic case
- Transmission distance within a certain range can be flexibly adjusted by the 3 level dials switch control

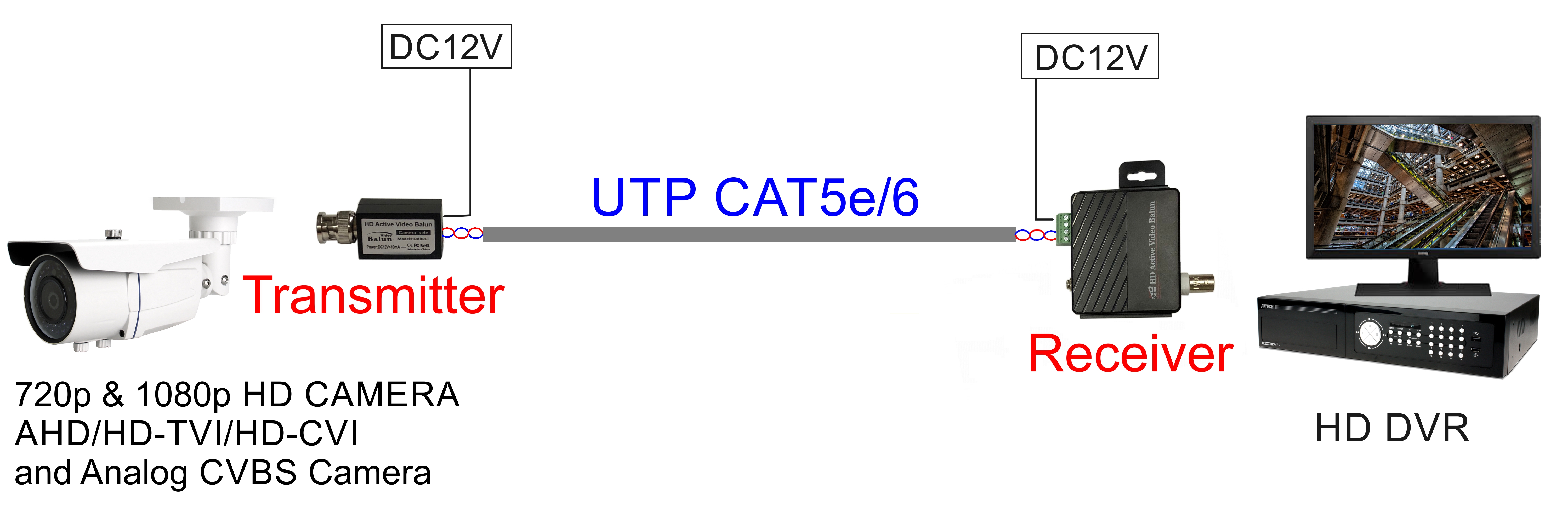

Application diagram
|
Model |
HD ACTIVE VIDEO BALUN |
|
Input power supply |
DC12V, 1A for each transmitter and receiver (power supply not included) |
|
Video connector |
BNC Male Connector |
|
Recommended cable |
CAT5/CAT5e/CAT6 |
|
Anti-interference |
>60Db |
|
Supported Resolution |
720p/ 1080p |
|
Impedance |
BNC Male: 75Ω
UTP: 100Ω |
|
Transmission Distance |
720P resolution
AHD: 700 meters/2100 ft
HD-TVI: 400 meters / 1200 ft
HD-CVI: 550 meters / 1650 ft
1080P resolution
AHD: 470 meters/ 1410 ft
HD-TVI: 400 meters / 1200 ft
HD-CVI: 450 meters / 1350 ft
|
|
Dimensions |
Transmitter: 38 x 21 x 20 mm
Receiver: 68 x 56 x 22.5 mm |
|
Environmental factors |
Operating Temperature: -5°C ~ 45°C
Storage Temperature: -20°C ~ 70°C
Humidity: 90%, non-condensation |
