product detail

4.3-in hands-free video doorphone 4-wires

Model: BCVM-505W

  • 4.3” LCD hands-free doorphone
  • Video talk, door lock release and monitoring
  • 4-wire connection
  • Supports 2 door cameras and  4 video doorphones
  • Call-transfer button to other video doorphones
  • Built-in panic button
  • White acrylic casing
  • Surface mounted

Example of installation

Power source AC 100-240V, 50-60Hz
LCD size 4.3 inch wide color LCD
Mount type Surface-mounted type
Wiring Door camera: 4 wires
Distance Door camera: up to 70 meters (wire ≥0.5mm2)
Dimensions 195x130x17 mm

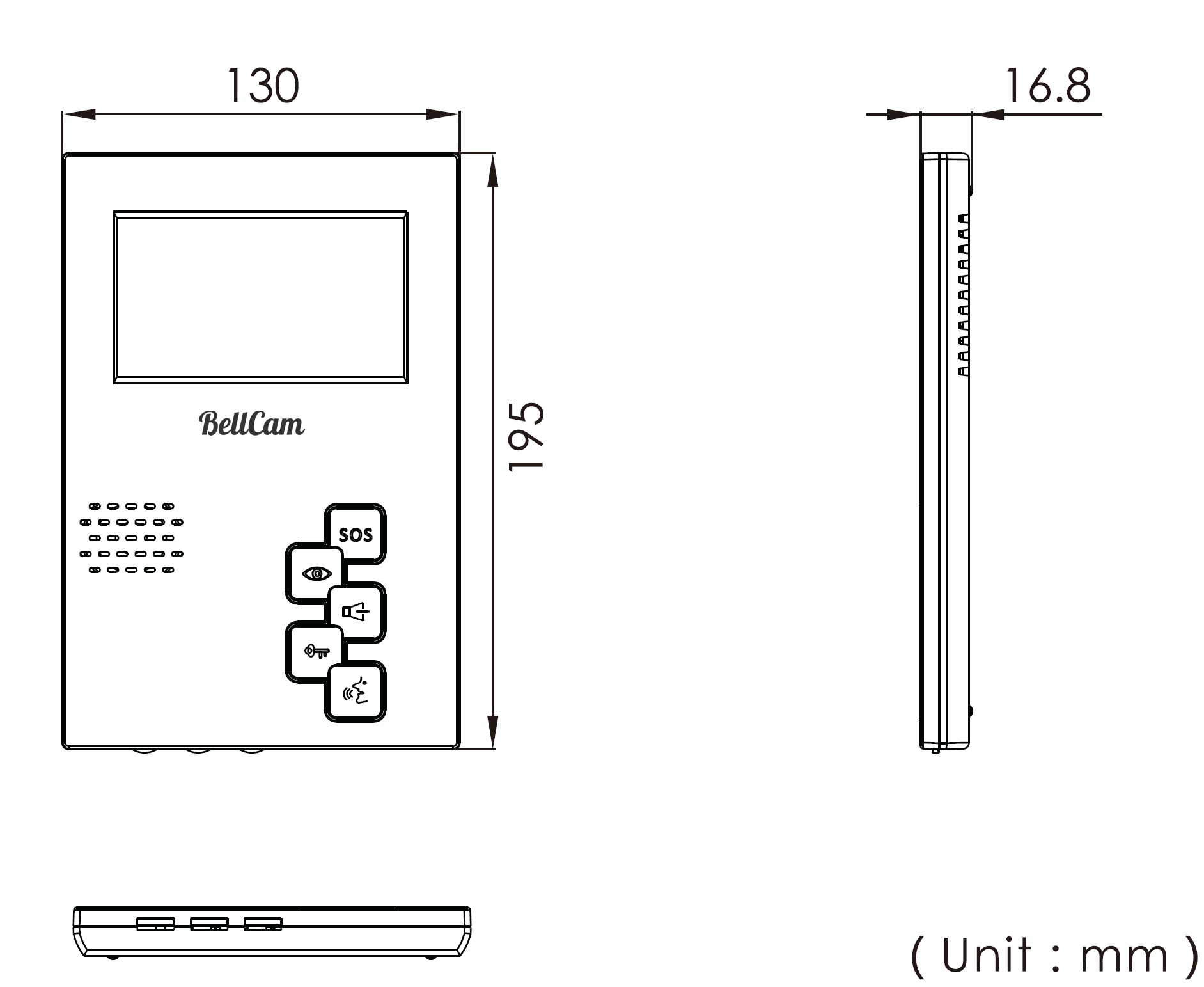

BCVD-505W dimensions

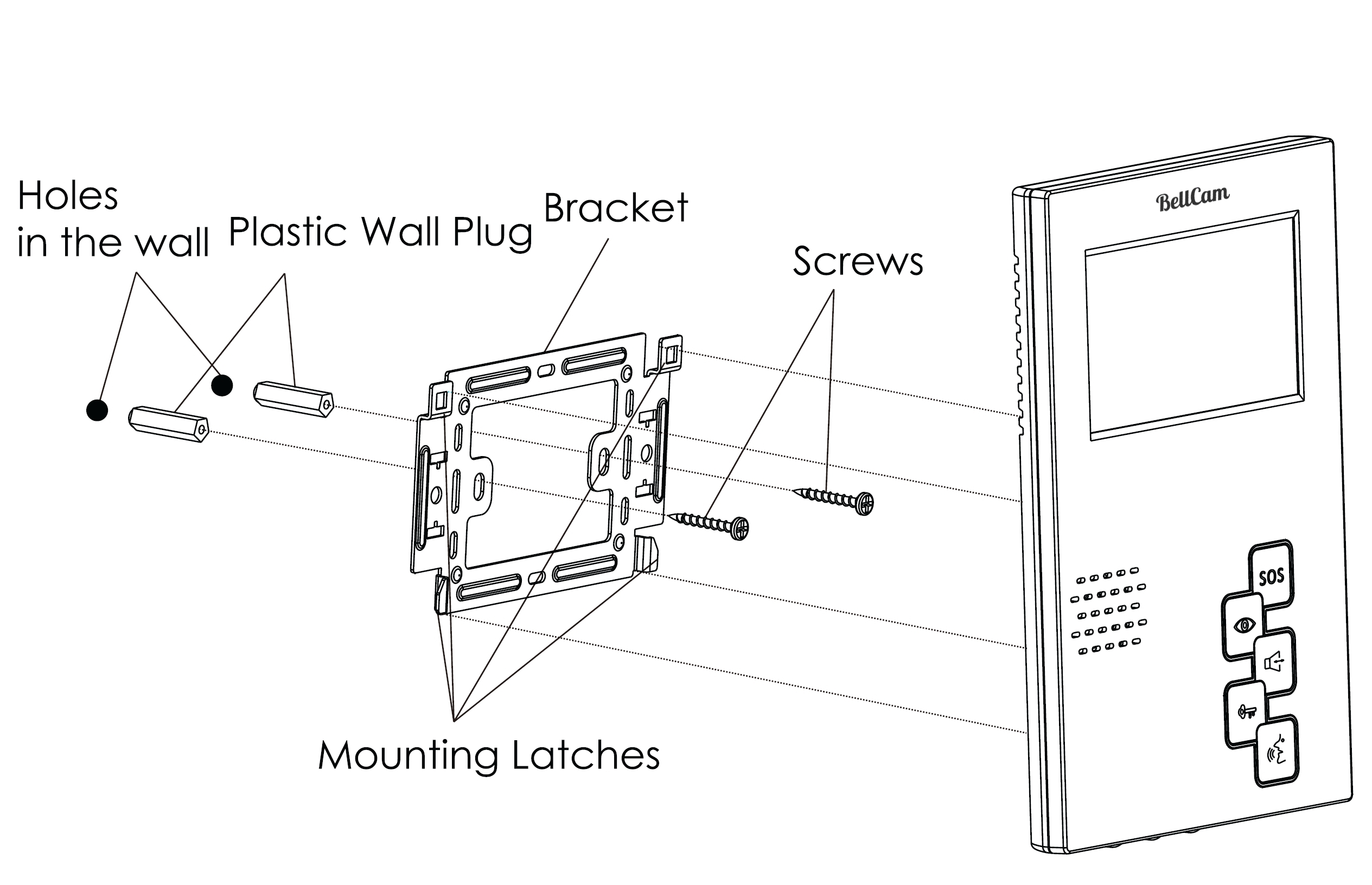

Installation View of 4.3-in video doorphone
