4-in-1 HD CCTV Video Converter HD-CVI/AHD/HD-TVI/CVBS to HDMI/VGA/Composite BNC Video/HD-CVI Loop out Converter MS-AD001HD4
Model: MS-AD001HD4
- Converts HD-CVI/HD-TVI/AHD signal to HDMI, VGA, composite video or loop out HD-CVI/HD-TVI/AHD.
- Input support: HD-CVI/HD-TVI/AHD 720p@25/30/50/60Hz, 1080p@25/30Hz, composite video (NTSC, PAL), 960H
- Output support: HDMI, VGA, composite video or HD-CVI/HD-TVI/AHD loop out.
- 3 outputs could be display simultaneously

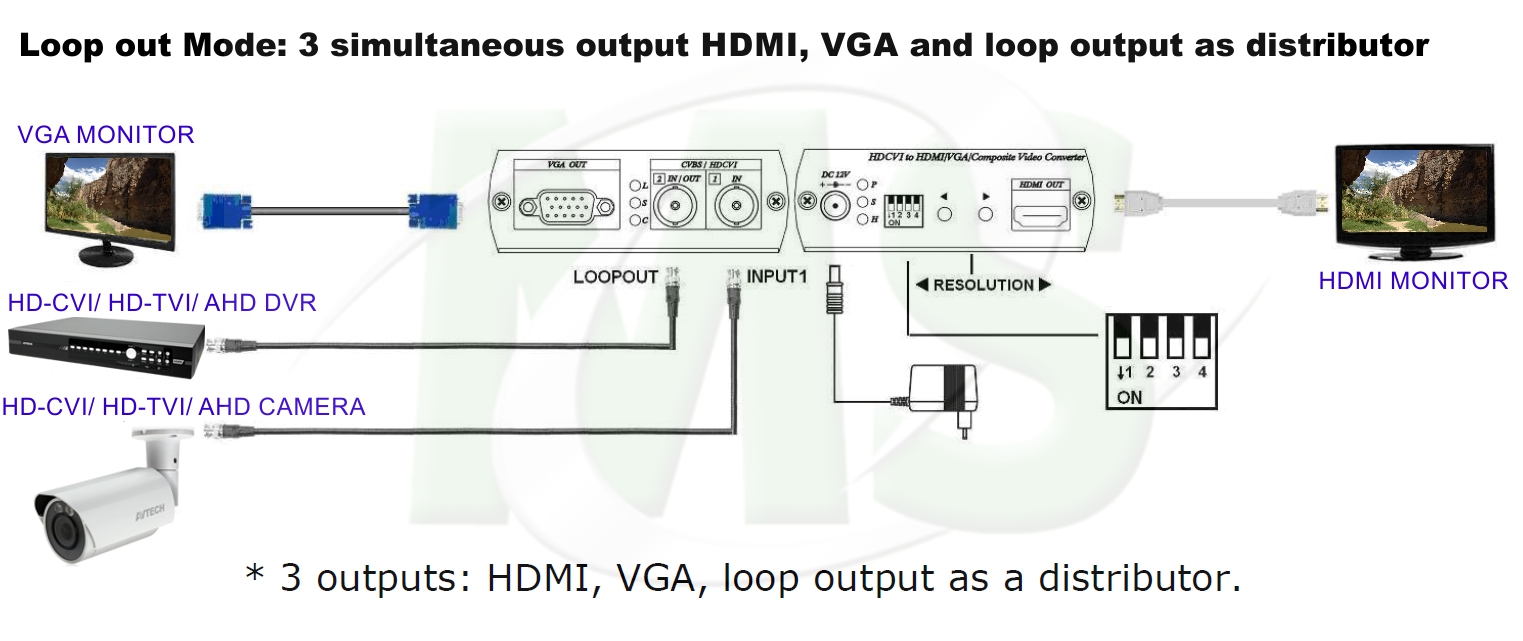

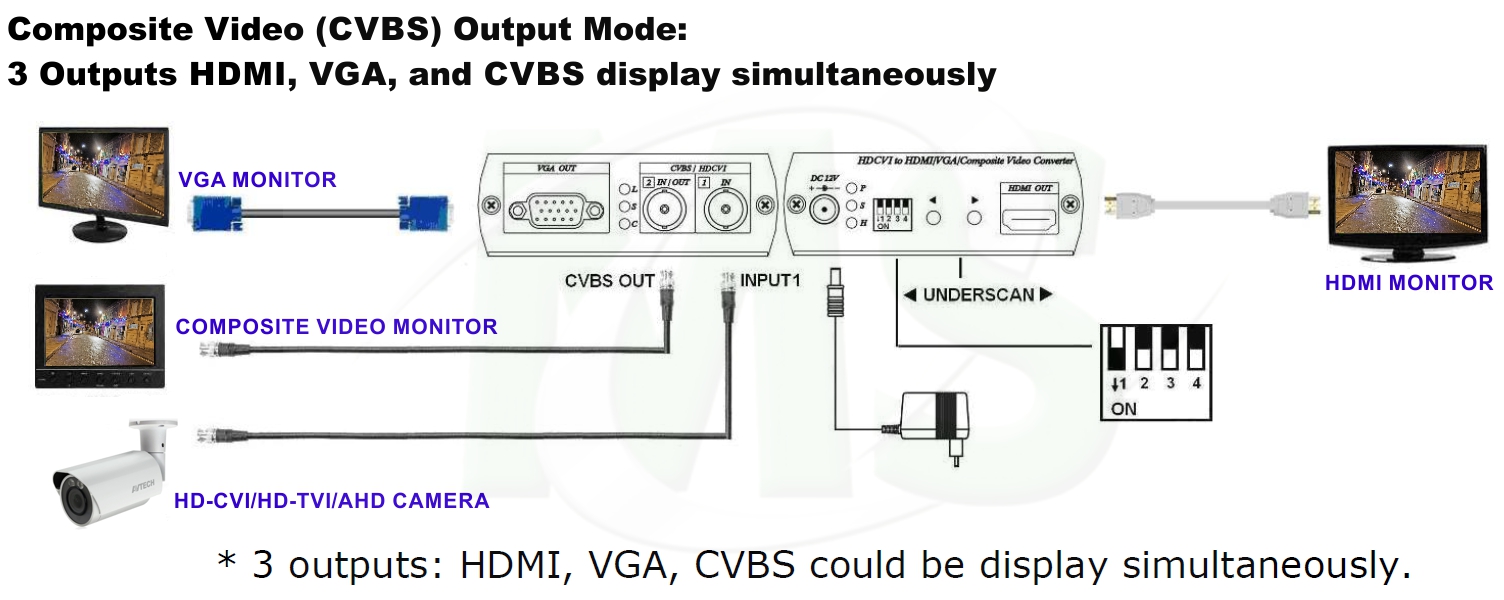

- BNC connector function selection: HD-CVI/HD-TVI/AHD loop output, composite video output or as a second camera input.
- Built-in PIP (display two input picture) under dual camera input mode.
- HDMI/VGA output support: 480p, 576p, 720p, 1080i, 1080p
- Composite video output support NTSC, PAL
- Composite output built-in underscan adjustment (allow the edges of the picture fit well)
- Built-in OSD to display input/output setting
- HDMI and DVI compliant (support DVI monitor by a HDMI to DVI adaptor)
| Model No. | MS-AD001HD4 |
| Video Input | HD-CVI/HD-TVI/AHD 720p@25/30/50/60 Hz, 1080p@25/30Hz, NTSC, PAL, 960H |
| Video Output | HDMI & VGA (480p, 576p, 720p 50/60Hz, 1080i 50/60Hz, 1080p 50/60Hz), CVBS (NTSC, PAL) |
| Input Connector | BNC (75Ω 1Vpp) |
| Output Connector | HDMI Type-A, D-SUB 15, BNC (75Ω 1Vpp) |
| Switch |
DIP Switch x 1, Tact Switch x 2 |
| Power Supply | 12V 500mA |
| Power Consumption | 350mA (Max) 4-5 Watts |
| Environmental | Operation Temperature: 0º to 55ºC, Storage Temperature: -20ºC to 85ºC, Humidity: up to 95% |
| Dimension (mm) | 88 x 130 x 30 |
| Weight (g) | 275 |
