16 Port HD Video Transceiver in 1U Rack Mounting Panel MS-TPP016HD

Model: MS-TPP016HD

  • Built in 16 port passive HD video transceiver in 1U 19” rack mounting panel.
  • Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16 channel inputs / outputs.
  • To send HD-CVI, AHD signal up to 300M over UTP cable.
  • To send HD-TVI signal up to 200M over UTP cable.
  • Passive, No power required.
  • Eliminate Coaxial Cable.
  • Works with Active Transmitter MS-TTA111HDT, MS-TTA111TVIT for extra-long distance transmission.
  • Built in ESD, EFT (impulse noise) and transient protection.

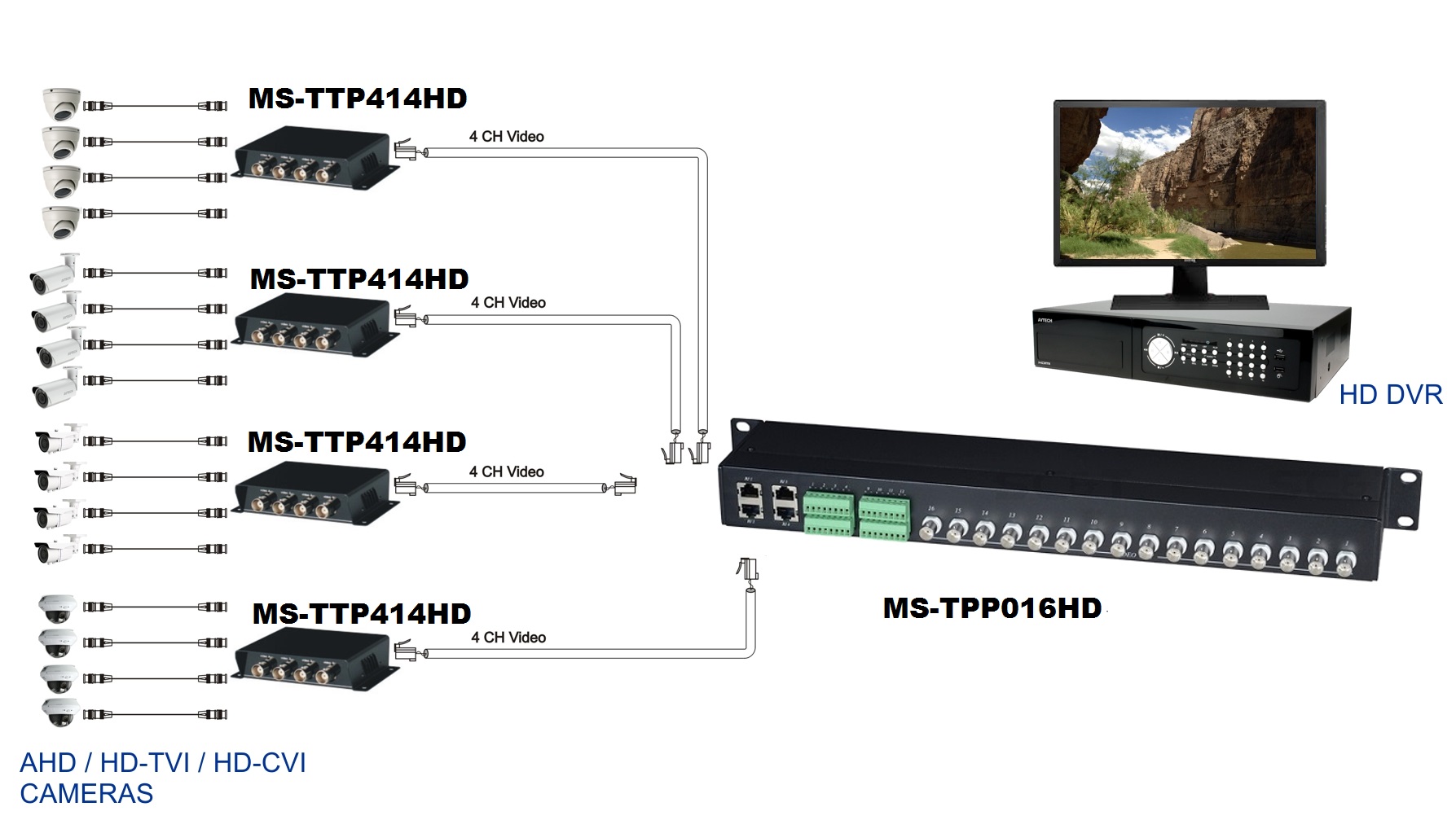

Installation View


Item No. MS-TPP016HD
Video Input / Output BNC x 16 (1Vp-p, 75 Ohm)
RJ45 Output 8 Pin terminal x 4 (100 Ohm) / RJ45 x 4
Recommended Cable CAT5e / CAT6 UTP
Bandwidth 50Hz ~ 60 MHz (-3dB)
Transmission Distance

HD-CVI / AHD: 300 meters

HD-TVI: 200 meters

ESD Protection 30 KV(Air), 15 KV (Contact); IEC 61000-4-2 compliant
EFT Protection 40A (5/50ns); IEC 61000-4-4 compliant
Lightning Protection 2A (8/20µs); IEC 61000-4-5 compliant
Surge Protection Attack time < 1nS
Environmental Specifications

Operation Temperature: 0ºC to 55ºC

Storage Temperature: -20ºC to  85ºC

Humidity: up to 95%

Dimensions (mm) 483 x 103.5 x 44 (1U)
Weight (g) 1380

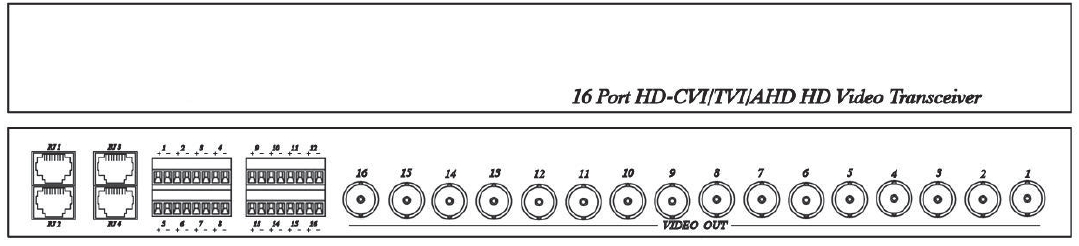

Panel View
