HD-CVI, HD-TVI, and AHD HD Video & Power Transceiver MS-TTP111HDP-LK
Model: MS-TTP111HDP-LK
- Transmit HD-CVI/TVI/AHD video and power over one CAT5e cable.
- Eliminate coaxial & power cable.
- Fast, easy installation, saving time and money.
- Substantial saving on the cost of the cable itself.
- Built in ESD, EFT (impulse noise) and transient protection.

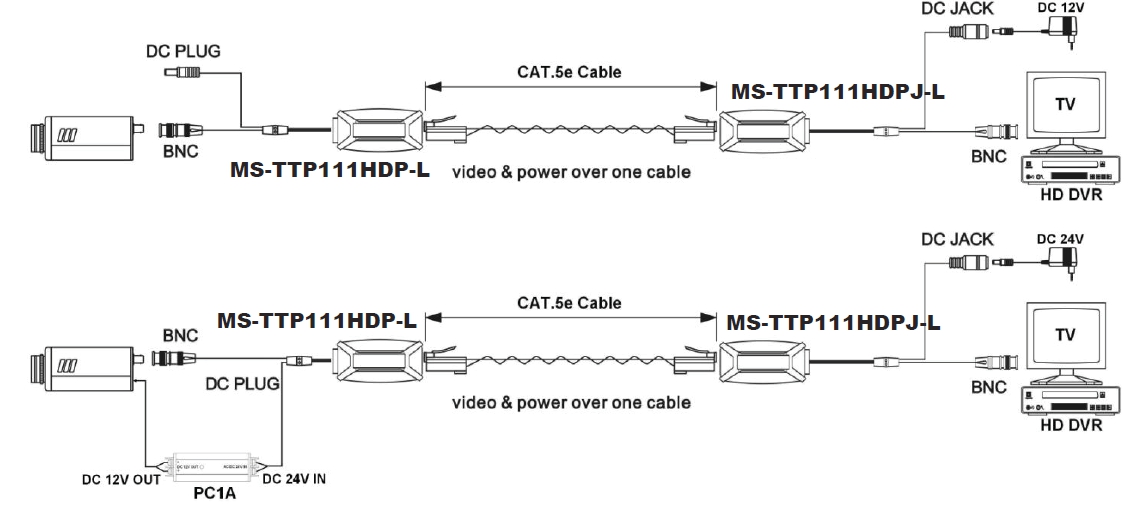

Installation View
| ITEM No. | MS-TTP111HDP-L | MS-TTP111HDPJ-L |
| Video Input/ Output Terminals |
BNC x 1(1 Vp-p, 75 Ohm) RJ45 x1 (100 Ohm) |
|
| Power | DC-PLUG | DC-JACK |
| Bandwidth | 50Hz ~ 60 MHz (-3dB) | |
| Transmission Distance |
HD-CVI / AHD: 300 meters HD-TVI: 250 meters |
|
| ESD Protection | 30 KV(Air), 15 KV (Contact); IEC 61000-4-2 compliant | |
| EFT Protection | 40A (5/50ns); IEC 61000-4-4 compliant | |
| Lightning Protection | 2A (8/20µs); IEC 61000-4-5 compliant | |
| Surge Protection Attack Time | < 1nS | |
| Environmental Specs |
Operation Temperature: 0ºC to 55ºC Storage Temperature: -20ºC to 85ºC Humidity: up to 95% |
|
| Dimensions (mm) | 69 x 25 x 20.7 + 120 mm pigtail cable | |
| Weight (g) | 45 | |
