PoE Extender over Two Wire MS-IP03P

Model: MS-IP03P

  • Extend Ethernet or any TCP/IP devices up to 1Km.
  • Ethernet and PoE data over any two wire cable: UTP, Coax, telephone, bell, alarm, power cables.
  • Data transfer distance up to 500M, data rate is up to 30Mbps based on distance.
  • Support 10/100 Mbps transmission rate.
  • Flexible power source either PoE Switch or external DC power adapter option. (order separately)
  • Provides pass-through PoE up to IEEE802.3at 30W.
  • Provides DC12V 1Amp power to camera.
  • Support high power PoE to PTZ cameras at long distances.
  • Connected devices are supplied with up to 7W via PoE.
  • MS-IP03P Power Source Option Model:

             DC48V 40W power adapter: SWP480830
             DC56V 70W power adapter: SWP551260
             High Power PoE Injector/ PoE Switch: MS-IP06I, MS-IP06H

ITEM NO.

MS-IP03PT

MS-IP03PR

Data Input /Output

10/100 Base-TX RJ-45, Auto-negotiation/ auto-MDI/MDI-X

Power, Data

Input /Output

Two port terminal block

Distance

Ethernet: 1000 Meters, PoE: 500 Meters (Max) based on cables

Power Source

PoE injector/Switch 802.3at/af PoE or DC 48V/DC56V power adapter

(order separately)

LED Indication

RJ45 (Green) x 1, Power (Green) x 1,Link (Yellow) x1

Protection

ESD Protection: 30KV, 1KA @ 8/20us

Data Rate (Max)

Uplink:47Mbps , Downlink:46Mbps

Uplink:46Mbps, Downlink:47Mbps

Power Consumption

4.8W

4.3W

Temperature

Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimensions (mm)

88 x 130 x 30

Weight (g)

270

Panel View

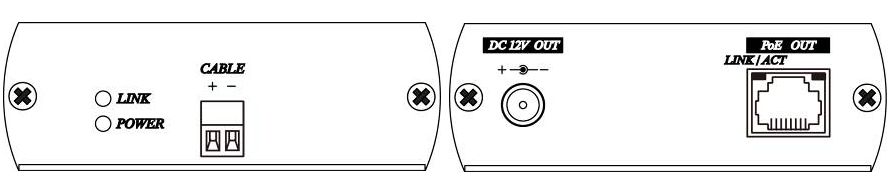

MS-IP03PT

                  Front                                                       Rear

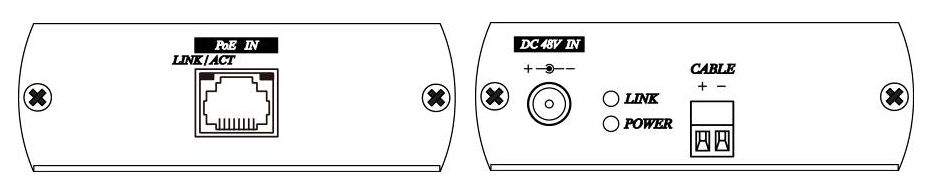

MS-IP03PR

                     Front                                               Rear
