product detail
HD-SDI Surge Protector with 10 cm coaxial cable MS-SP007L
Model: MS-SP007L
- BNC male to BNC female.
- With 10 cm HD coax cable for easy mounting behind DVR and reduce video loss
- Provide protection for HD-SDI DVR, TV, broadcasting devices.
- SDI transmission rate: 270M ~ 1.5G
- Resisting Surge：8KV (Max)
- Discharging Current：10KA (Max)
- Reaction Speed：<1nS

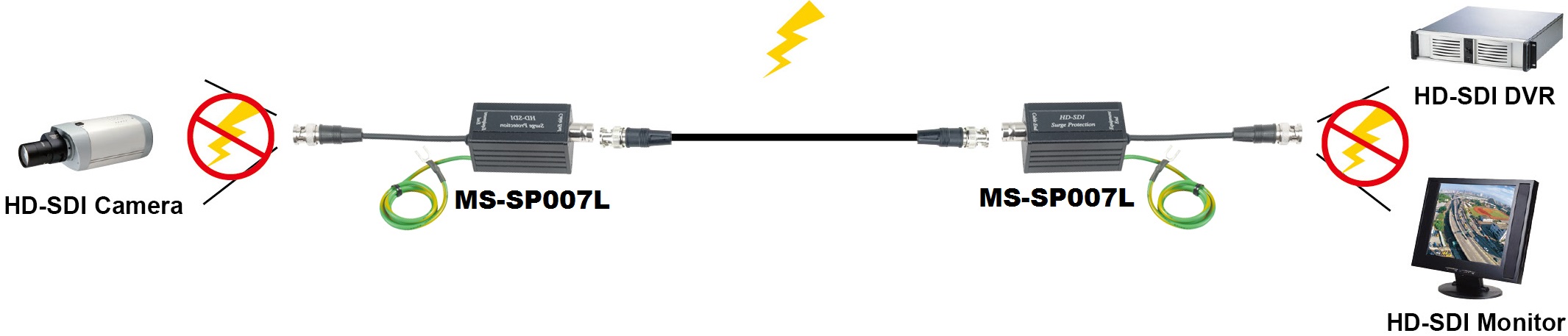

Installation View
|
ITEM |
MS-SP007L |
|
Equipment Connector |
BNC MALE (75 Ohms) |
|
Cable Connector |
BNC FEMALE (75 Ohms) |
|
Transmission Rate |
1.485Gb/s (Max) |
|
Insertion Loss |
0.7dB @ 1.5Gb/s |
|
Resisting Surge |
8KV (Max) |
|
Discharging Current |
10KA (Max) |
|
Reaction Speed |
<1nS |
|
Dimensions |
75.5 × 25.4 × 25.4 (mm) |
|
Shipping Weight |
68 (g) |
