RS485 to TCP/IP Ethernet Converter MS-RS006
Model: MS-RS006
- Three operation mode :TCP Server, TCP Client, UDP Mode
- Data Baud rate: 300 ~ 230400 bps
- RS485 Distance up to 1.2KM.
- Support half duplex transmission
- Auto detection network 10/100 Mbps
- Support auto MDI / MDIX

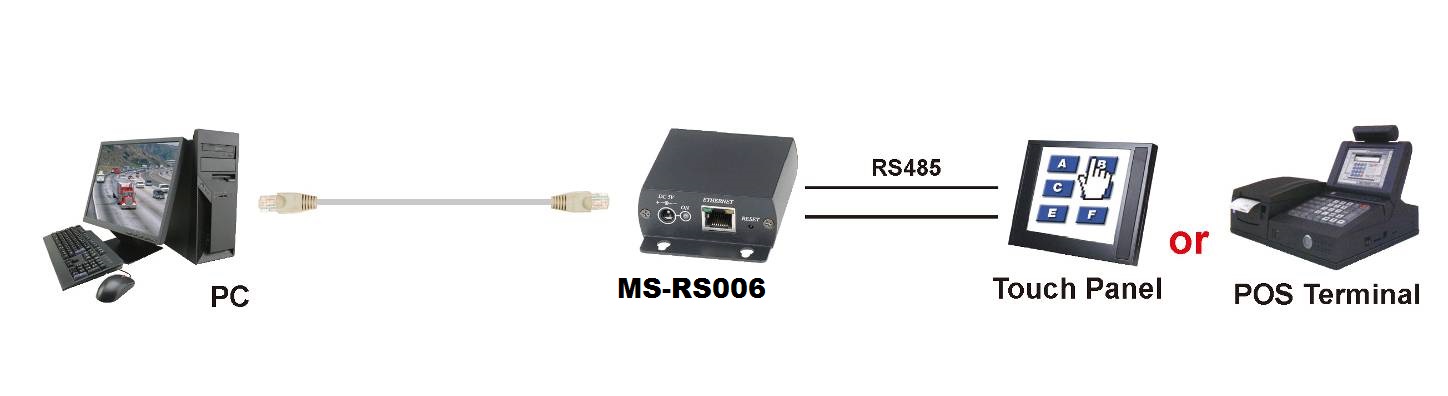

Installation View
|
ITEM NO. |
MS-RS006 |
|
TCP/IP Ethernet |
RJ45 x 1 |
|
RS485 Interface |
2 pin removable terminal |
|
Distance (Max) |
1.2KM |
|
Baud Rate Speed |
300 ~ 256000 bps |
|
LED Indication |
POWER x 1 (Green)，RJ45 x 1 (Green/Yellow)，Tx/Rx x 1 (Yellow)， SYS x 1 (Green) |
|
Function button |
1 |
|
Power Adapter |
DC 5V 500mA |
|
Power Consumption (Max). |
220mA @ 10/100Mbps |
|
Temperature |
Operation: 0 to 55ºC, Storage: -20 to 85ºC, Humidity: up to 95% |
|
Dimensions (mm) |
67 x 91 x 27 |
|
Weight (g) |
140 |

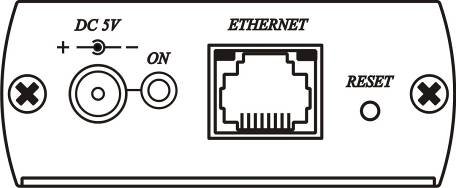

Front and Back Panel View
