USB 2.0 Fast CAT5 Extender with 4 Port USB Hub MS-UE03
Model: MS-UE03
- Extend four USB devices up to 60 meters/196 feet over CAT5e cable.
- Supports USB 2.0 high speed and USB 1.1 (low speed, full speed) devices.
- Remote unit built in 4 port hub to connect 4 USB devices.
- Application for extending all USB 2.0 peripheral devices, such as USB camera, printer, scanner, USB Ethernet/VGA/HDMI adapter, mass storage device.

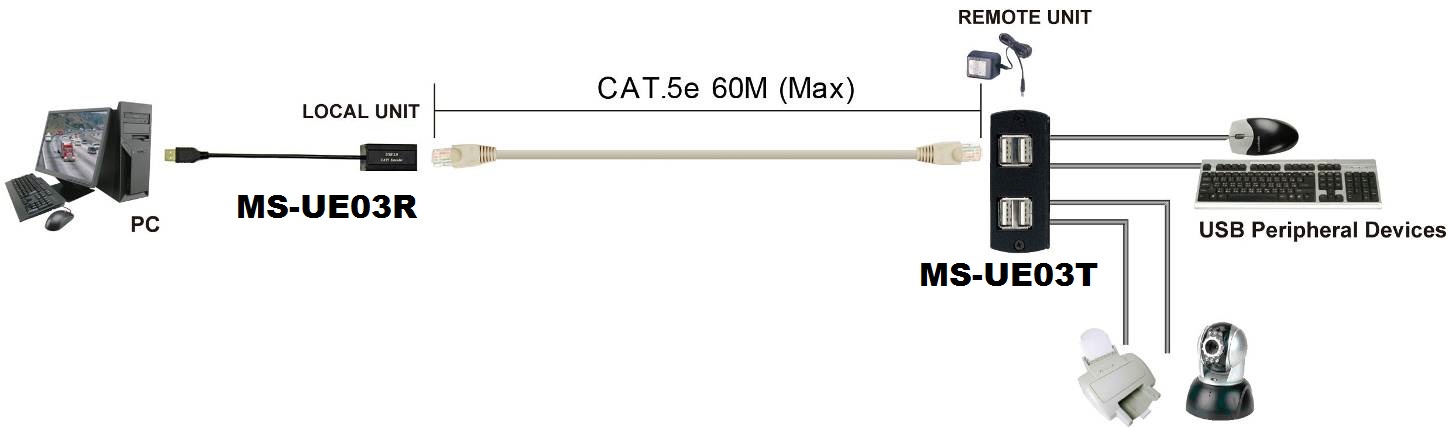

Installation View
|
ITEM NO. |
MS-UE03T ( Remote Unit) |
MS-UE03R (Local Unit) |
|
Input / Output |
USB Type A x 4 (Female) |
USB Type A x 1 (Male) |
|
Link Connector |
RJ45 x 1 |
|
|
Cable |
CAT5/5e/6 cable |
|
|
Working Distance |
CAT.5e: 60M |
|
|
USB Device Support |
Hi-Speed (480Mbps), full speed (12Mbps), low-speed (1.5Mbps) |
|
|
Power Consumption |
4 Port USB Device Can Supply a Total of 1500 mA |
|
|
Power Adapter |
5V DC 2A Regulated (External) |
USB Internal Power Supply |
|
Temperature |
Operation: 0 to 55ºC, Storage: -20 to 85°C, Humidity: up to 95% |
|
|
Dimensions (mm) |
60 × 70 × 27 |
25.4 × 25.4 × 240 + 190mm USB Cable |
|
Weight (g) |
115 |
55 |
Panel View
MS-UE03T
MS-UE03R
