16 Port Cable Integrator (Video, Power, Data) In 1U Rack Mounting Panel MS-TDP016
Model: MS-TDP016
- 16 Port Cable Integrator (Video, Power, Data) In 1U Rack Mounting Panel
- 16 x RJ45 connector for video input + power output + data output
- 4 x RJ45 connector for video output, 4 x 8 pin terminal for power input, 1 x 2 pin terminal for data input.
- Built in surge protection on data signal.
- Individual power input, could send different power voltage based on camera power consumption and transmission range.
- Use with MS-TTP111VPD-RJ45 video, power, data transceiver at the camera side.
- Use any third-party power supply to power cameras via UTP
- Use with MS-TTP016-RJ45 as video transceiver receiver at control room.
- Perfect cable management solution from the camera to the wiring station, control room.

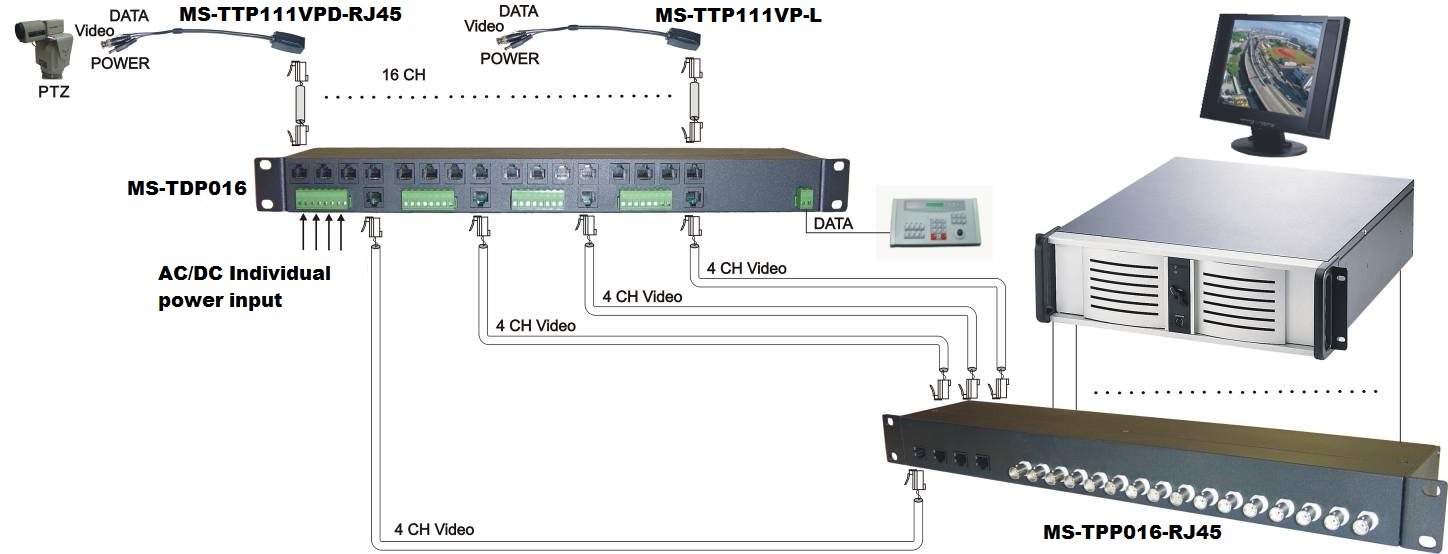

Installation View
|
ITEM NO. |
MS-TDP016 |
|
Video Input |
RJ45 × 16 |
|
Video Output |
BNC × 16 (1 Vp-p, 75 Ohm) |
|
Power Input |
8 pin terminal × 4 |
|
Power Output |
RJ45 |
|
Data Signal Input |
2 pin terminal × 1 |
|
Data Signal Output |
RJ45 × 16 |
|
Recommended Cable |
CAT5 UTP (24 AWG) |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
483 × 99.2 × 44 (1U) |
