Video, Power, Data Transmitter Built in DC12V Power Regulator MS-TTP111VPDC
Model: MS-TTP111VPDC
- To send video and remote power over one UTP CAT5 cable.
- Built in RS485 terminal for data transmission.
- Built in power detection with power output DC12V regulated 1.5Amp at 300 meters.
- Built in fan for low operating temperature.
- Transmission distance up to 300 meters.
- Built in LED indication.
- Built in ESD and surge protection.
- For DC12V camera use, the power sources from remote UTP receiver: MS-TTA111VPDR, MS-TTA414VPDR for professional CCTV Industry Installation.

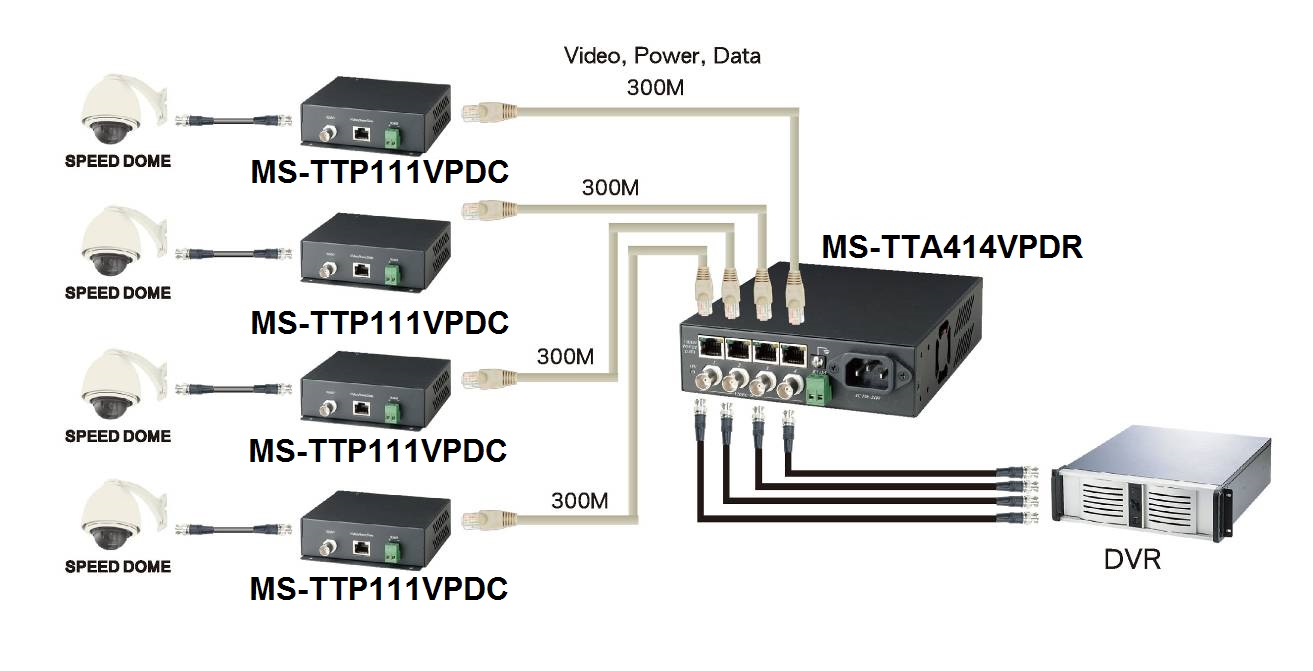

Installation View
|
ITEM NO. |
MS-TTP111VPDC |
|
Video, Input |
BNC, 1Vp-p, 75ohm |
|
Data Input |
RS485 Terminal Block |
|
Video, Data, Power Transmission |
RJ45 Termination |
|
LED Indication |
Power: Blue color |
|
Output Power |
12V, 1.5Amp ( Max) |
|
Power Consumption |
3W ( Max.) |
|
Distance |
300 M |
|
Recommended Cable |
CAT 5 Cable 4 Pairs (24 AWG) |
|
Temperature |
Operation: 0°C to 55°C, Storage: -20°C to 85°C, Humidity: up to 95% |
|
Dimensions (mm) |
117 x 119.7 x 36 |
|
Weight (g) |
420 g |

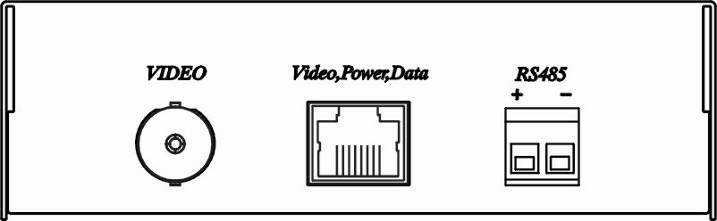

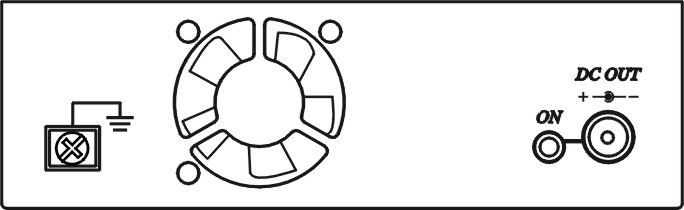

Panel View
