16 Amp 16 Port DC12V Regulated Power Supply in 1U Rack Mounting Panel MS-PR1616-12R
Model: MS-PR1616-12R
-
16 AMP 16 port power supply, AC120V/230V to DC12V Switching regulated output.
-
AC120V/230V to DC12V Switching regulated output.
-
Each port output current 1.1Amp (Max).
-
Built in “no fuse breaker” to avoid current overload.
-
Built in PTC (positive temperature coefficient) for short protection and auto rework on each port.
-
Built in fan at front and back panel each for low operating temperature.
-

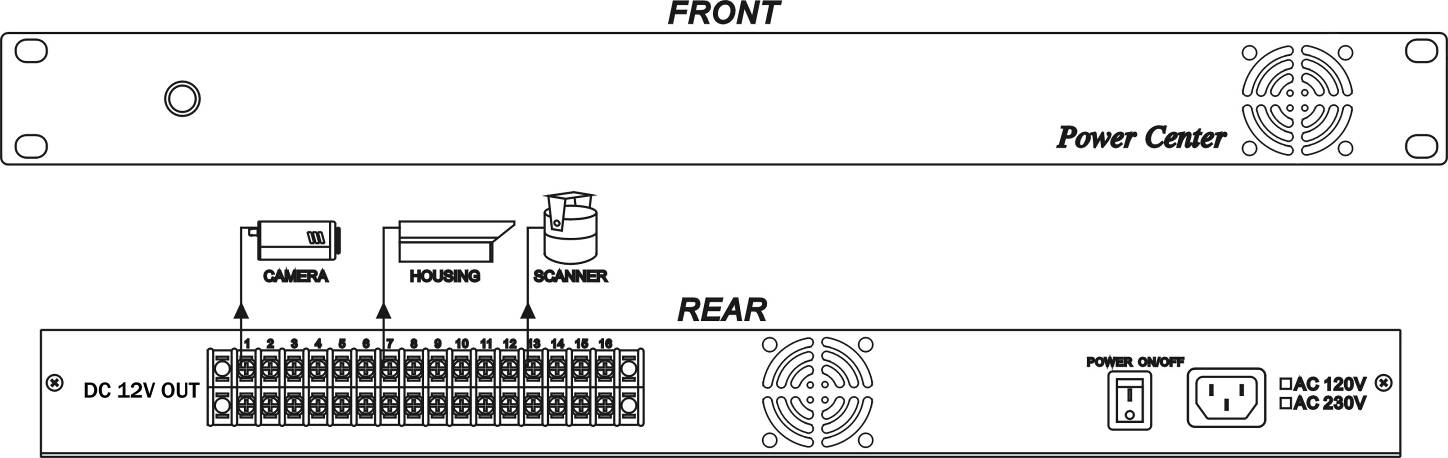

It is perfect to install in the control room. Application for larger industry CCTV installation where need numbers of camera, housing, pan tilt turning device or other surveillance equipments power sources from control room.
|
ITEM NO. |
MS-PR1616-12R |
|
|
Port |
16 |
|
|
Output Voltage |
DC12V (Regulated) |
|
|
Output Current |
1AMP/ Port |
|
|
Output Trip Current |
1A / Port |
|
|
Short Circuit Cut Time |
0.2 Sec/ Port |
|
|
Cut Current / Time |
2.5A/ 4Sec |
|
|
Reset able Output |
AUTO |
|
|
Reset able Output Time |
1 Sec (Min) |
|
|
Fan spec. |
Rated speed: 5200 RPM Rated Current: 0.03Amp, Rated Power: 0.4 W |
|
|
Fan |
1 piece at back panel 1 piece at front panel |
|
|
Total Output Current |
16Amp (Max) |
|
|
Dimensions (mm) |
437×170×44 1U height |
|
|
Weight (g) |
3100 |
|
|
Storage Temperature |
-30℃~70℃ |
|
|
Operation Temperature |
-10℃~45℃ |
|
