8 Amp 16 Port DC12V NON-Regulated Power Supply in 1U Rack Mounting Panel MS-PR816-12D
Modelo: MS-PR816-12D
- 16 Ports 8Amp power supply in 19” standard 1U rack mounting cabinet
- AC120/230V to DC12V NON-Regulated/ 8A (Max) output.
- Non-load output voltage DC17V
- Built in PTC (positive temperature coefficient) for short protection and auto rework on each port
- Built in "no fuse breaker" to avoid current overload.
- Toroidal transformer for high efficiency and low operating temperature.
- Perfect to install in the control room. Application for larger industry CCTV installation where need numbers of camera, housing, pan tilt turning device or other surveillance equipments power sources from control room.

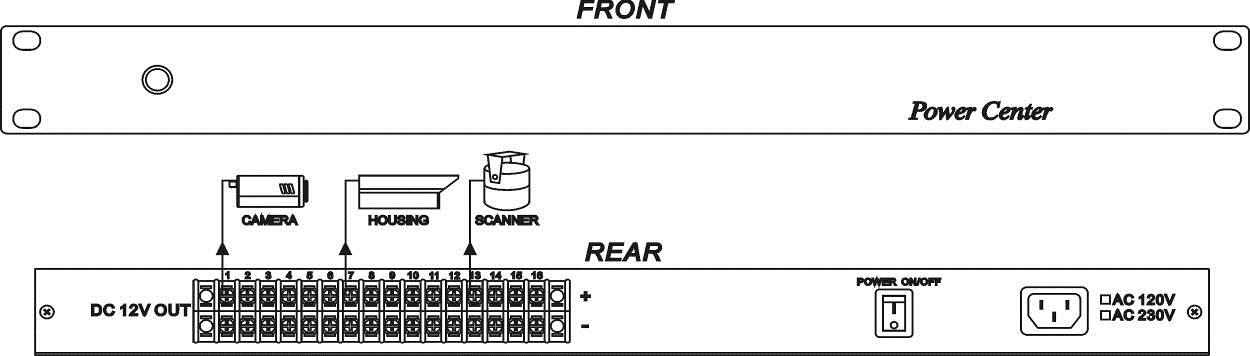

Installation View
| ITEM No. | MS-PR816-12D |
| Port | 16 |
| Output Voltage | DC12V NON-Regulated |
| Output Current | 1.1A Max./ Port |
| Output Trip Current | 1A / Port |
| Short Circuit Cut Time | 0.2 Sec/ Port |
| Cut Current / Time | 2.5A/ 4Sec |
| Resetable Output | AUTO |
| Resetable Output Time | 1 Sec (Min) |
| Total Output Current | 8A (Max) |
| Dimensions (mm) | 437 × 170 × 44 1U height |
| Weight (kg) | 4 |
| Storage Temperature | -30°C ~ 70°C |
| Operation Temperature | -10°C ~ 45°C |
