1 Input to 1 Output Video Amplifier, HF/MF/LF Compensation MS-CA101VH
Model: MS-CA101VH
- Amplifier for long- range video transmission up to 1000 meters over RG59 coaxial cable
- Wide bandwidth, video gain compensation amplification.
- Built in Input Impedance adjustment.
- Built in Balance adjustment.
- Built in Liner Gain adjustment.
- Built in HF/LF/LF Compensation for color gain.
- Built in a highly balanced mode of video transmission for extra interference immunity.
- Built in Surge Protection.
- Red LED: As power on indicator.
- Perfect to maintain good quality picture for long-range transmission with DVR.
- Power supply included.

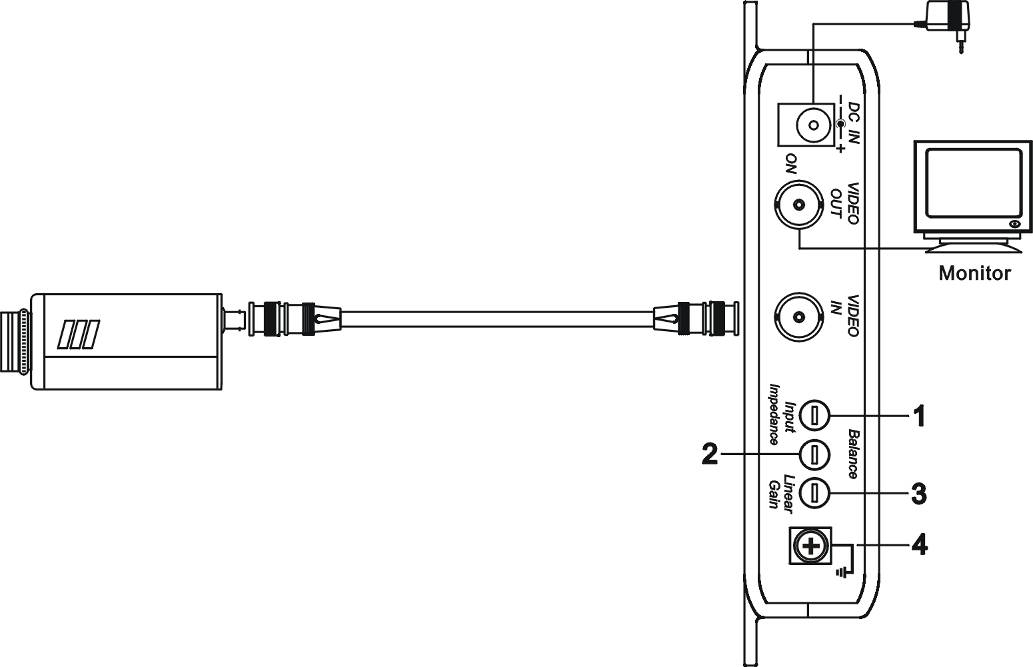

Installation View:
|
ITEM |
MS-CA101VH |
|
Video input |
0.12-2 Vpp |
|
Input impedance |
45 - 175 Ohms |
|
Video output |
1 Vpp, 75 Ohms |
|
Freq. response |
50 Hz - 5 MHz(-3 dB) |
|
Disturbance reduction |
> 70 dB, 50Hz |
|
Gain adjustment |
+6 dB…+60 dB at 5 MHz |
|
Noise |
-50 dB at+40 dB gain adj. ,-47 dB at+60 dB gain adj. |
|
Power Consumption |
DC12V, 150mA (max) |
|
Input protection |
Surge arrester |
|
Indicators |
LED(Red)-power on |
|
Dimensions (mm) |
138 x 77.4 x 28 |
|
Weight (g) |
112 |

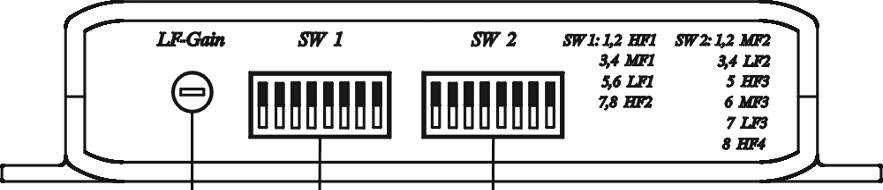

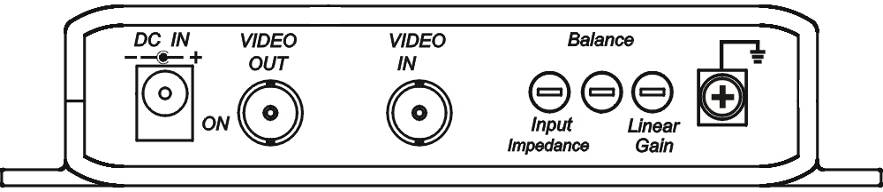

Frontal & Rear Panel View
