4 Input to 4 Output Video Amplifier MS-CA404
Model: MS-CA404
- Wide bandwidth, video gain compensation amplification.
- HF compensation.
- 10dB adjustable image gain.
- Sharpness and Brightness adjustment.
- Transmission range: 1000 meters (RG59 coaxial cable)
- Red LED: power on/off.

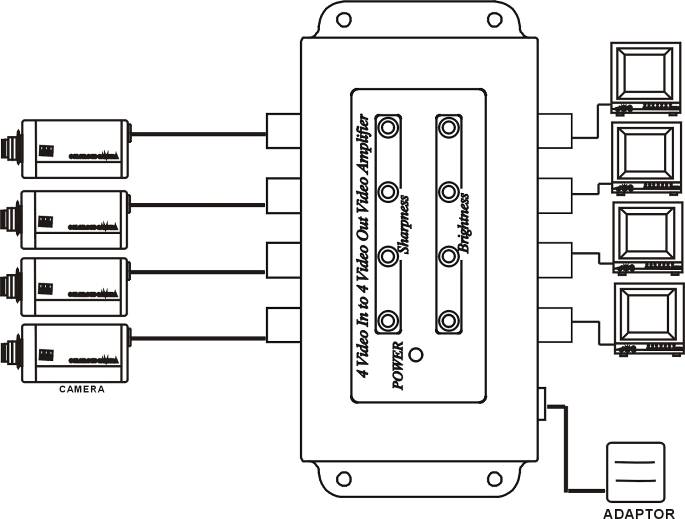

- It can be connected video camera, multiplexer, VCR, DVR…etc.
- Power supply included.
|
ITEM NO. |
MS-CA404 |
|
Video Input Channel |
BNC x 4 |
|
Video Output Channel |
BNC x 4 |
|
Video Input Level |
0.8~1.2Vp-p, 75 Ohms |
|
Video Output Level |
1Vp-p (Standard), 75 Ohms |
|
Video Bandwidth |
10hz - 10MHz |
|
Transmission Range |
1000 meters |
|
Power Supply |
DC12V |
|
Power Consumption |
220mA |
| Temperature | Operation: 0 tp55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
138 x 89 x 32 |
|
Weight (g) |
145 |
