Stereo Audio Ground Loop Isolator MS-AE02GL
Model: MS-AE02GL
-
Stop the humm in your speakers.
-
Provides superior audio performance.
-
Totally preserves your audio signal.
-
Breaks the electrical ground between audio components, no path for current flow.
-
Compatible with all audio components.
-
Ideal for multiple amplifier installations.

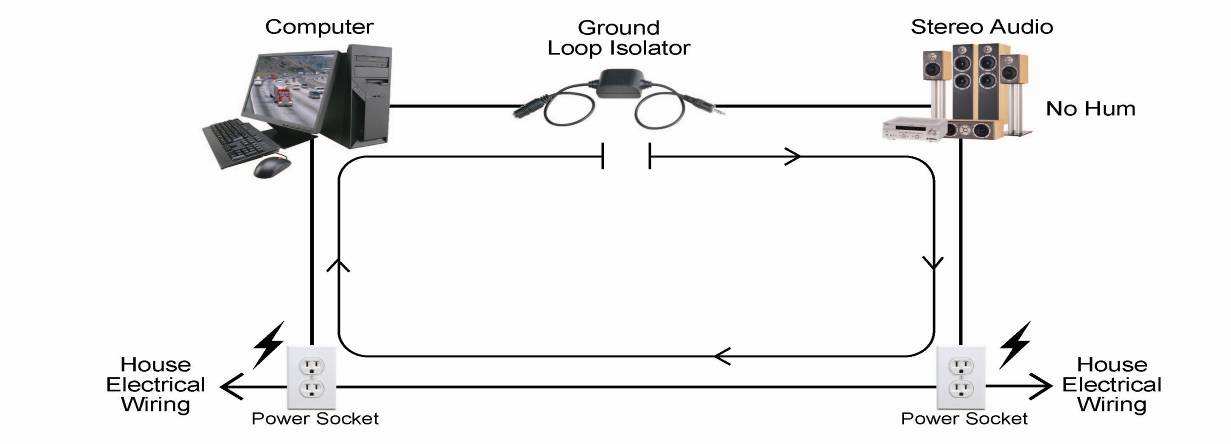

Installation View
|
ITEM NO. |
MS-AE02GL |
|
Audio Input / Output |
3.5 mm Phone Jack / Plug x 1 |
|
Audio Input Impedance |
600 Ω，12.3 Vrms |
|
Audio Bandwidth |
20~20K Hz (-3dB) |
|
Insert Loss |
@1KHZ, 0dBm |
|
Return Loss |
@Ref 600Ohm:: @300HZ= 20dB Min., @1Khz-22dB Min., @4Khz= 22dB Min. |
|
Frequency Response |
@Ref 600 Ohm: @300Hz= ±0.35dB, @4Khz= ±0.35dB |
|
Turn Ratio |
@18Khz, 1Vrms |
|
Connector |
2 x RCA gold-plated male connector |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
552 x 29 x 25（with cable 25.4 cm x 2） |
|
Weight (g) |
50 |
