UTP Video Repeater, 1 In 2 Out Video Distributor MS-TDA102
Model: MS-TDA102
- As a UTP repeater, to boost UTP signal up to 1.2 KM.
- Built in twisted pair active receiver (MS-TA111VR).
- Dual output: 1 BNC output for local, plus 1 terminal output for remote side.
- Transmission range: up to 300 meters work with passive receiver at remote side. up to 1200 meters work with active receiver at re emote side.
- Power supply included.

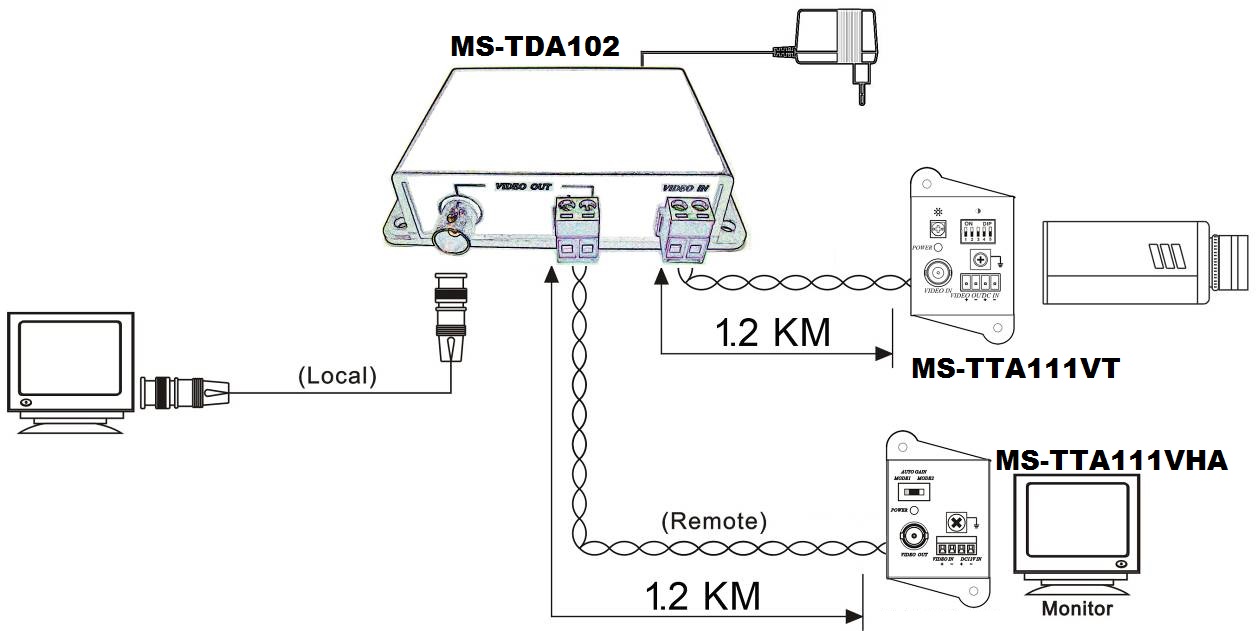

Installation View
|
ITEM NO. |
MS-TDA102 |
|
Video Input |
1Vp-p, 75 Ohms (BNC Connector) |
|
Video Output |
BNC x 1 (1 Vp-p，75 Ohm) + 2 pin terminal port (100 Ohm) |
|
Power Consumption |
40mA (Max) |
|
Power Supply |
DC 12V 500mA |
|
Recommended Cable |
CAT5 UTP (24AWG) |
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
|
Dimensions (mm) |
108 x 76 x 27 |
|
Weight (g) |
95 |
