16 Channel UTP Surge Protection for DVR in 1U Rack Mounting Panel MS-SP016T
Model: MS-SP016T

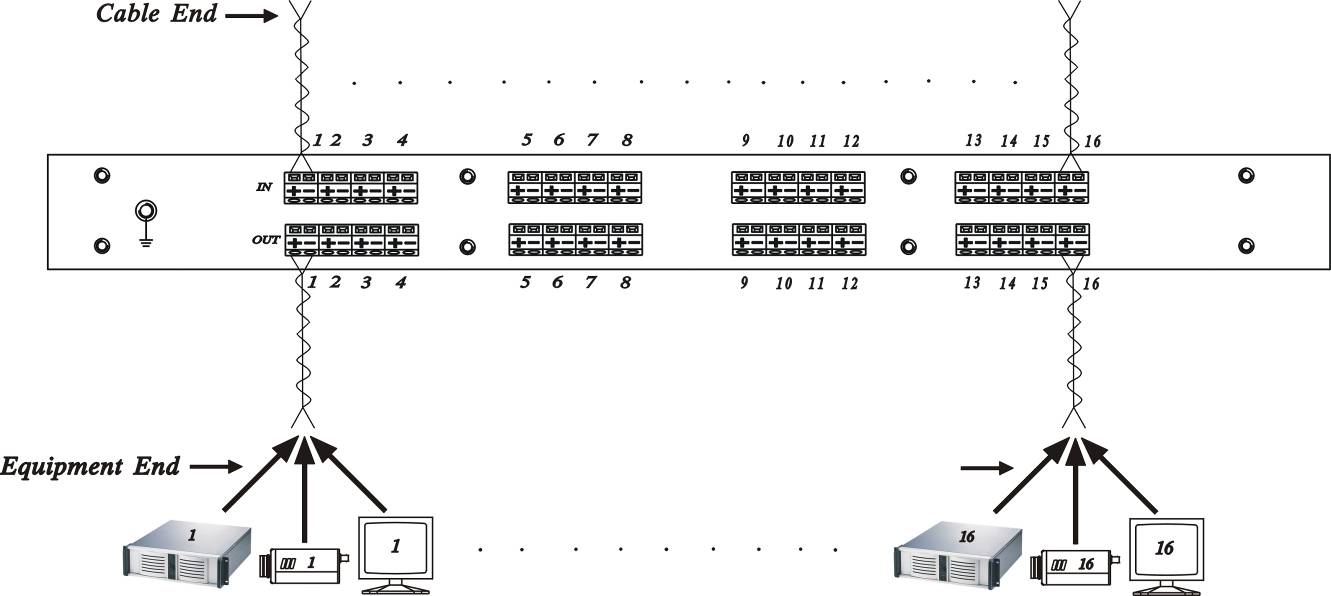

- 16 Terminal connector to 16 terminal connector
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: under100ns – 90V, over 100ns-12V.
- Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video
- Provide protection for DVR, multiplexers or any equipment with multiple video inputs.
|
Item |
MS-SP016T |
|
Surge Protection Attack Time |
1 ns |
|
Maximum Surge Voltage |
4 KV |
|
Surge Life |
300 surges of 100Amps |
|
Normal Resistance Across Coax |
10,000 MΩ |
|
Surge Resistance |
Approx. 0Ω |
|
BAND PASS |
1 GHZ |
|
Power Passing Capability |
DC 90V, AC 90Vp-p, 65 Vrms at 10 Amps |
|
Insertion Loss |
Less than 0.2 dB |
|
Return Loss (75 ohms) |
16dB |
|
Connectors |
Terminal |
|
Dimensions (mm) |
482 x 170 x 44mm standard 1U Rack Panel |
|
Weight (g) |
1200 |
