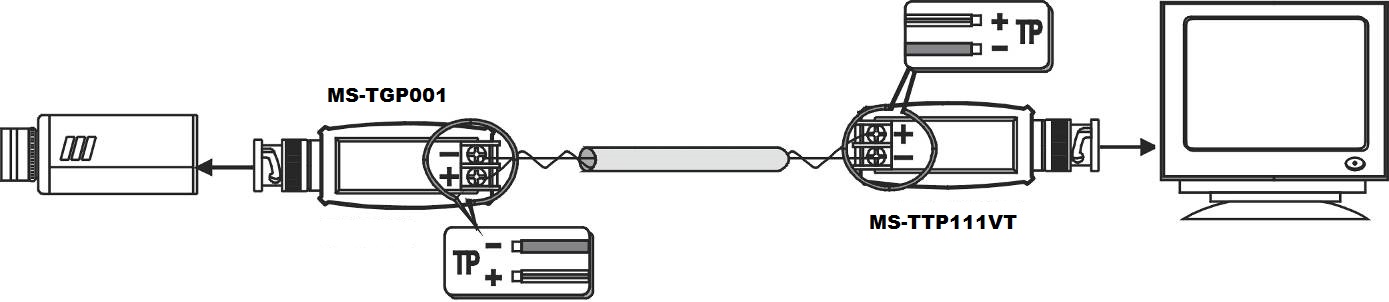

Twisted Pair Ground Loop Isolator Built in Video BALUN MS-TGP001
Model: MS-TGP001
- BNC male to 2 pin terminal block.
- Others same as MS-GL001 Ground Loop Isolator function.
- Built in Video BALUN.
- Eliminate Coaxial Cable.
- Prevents video-signal distortion caused by video ground loops.
- Eliminates picture tearing, cross talk and rolling.
- Prevents power cables laid by others interfering with the CCTV system
|
ITEM NO. |
MS-TGP001 |
|
|
Insertion Loss |
0.5dB |
|
|
Frequency Response |
20Hz - 10MHz (0～3dB) |
|
|
Coaxial Input/Output Resistance |
75 Ohm |
|
|
Twisted Pair Input/Output Resistance |
100 Ohm |
|
|
Ground Isolation |
>90dB @ >50Hz |
|
|
Isolation Voltage |
DC 600V (Min) |
|
|
Insulation Resistance |
100M Ohm |
|
|
Dimensions (mm) |
69.5 x 25 x 20.7 |
|
|
Weight (g) |
32 |
|
