4 Input to 2 Output Component Video Matrix Switcher with Stereo Audio MS-YS04MA
Model: MS-YS04MA
- HDTV Compatible at 720p/1080i/1080p.
- Connect up to 4 A/V sources to two display monitors.
- 4 set component video and stereo audio input.
- 2 set component video and stereo audio output.
- Each display can view any input independently.
- Built in auto scan switching input function, to automatically select the next one with the signal of the input.
- Built in auto jump function, to automatically select the new video input.
- LED display shows which input is selected for each of the 2 outputs.
- Built in setup memory function.
- Built in 2 sets of 2 buttons for channel change.
- Easy to use front panel control of switching or using the included remote control.
- The switcher box is the ideal for all of devices, offering both high-definition video and audio switching capability.
- PC Remote control option: USB, RS-232 or RS-485 terminal devices. (Order separately).
-
Remote Control Optional Models:
1. MS-RC01: RS232 to UART
2. MS-RC02: RS485 to UART
3. MS-RC03: USB to UART

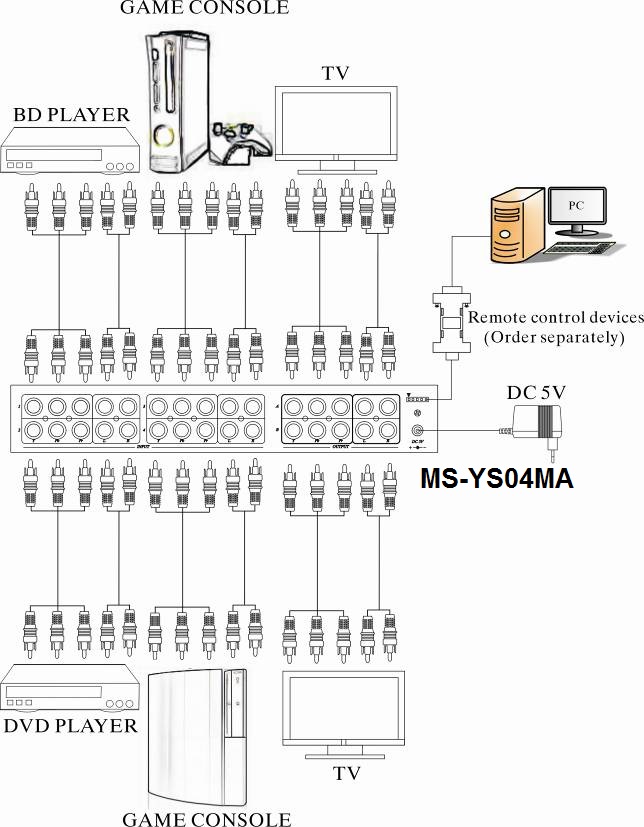

Installation View
|
ITEM No. |
MS-YS04MA |
|
|
Resolution |
1080p (Max) |
|
|
Video Bandwidth |
0-500MHz (-3dB) |
|
|
Video Input |
RCA x 12: Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
|
Video Output |
RCA x 6: Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
|
Video Connector |
RCA |
|
|
Audio Bandwidth |
0-100Khz (-3dB) |
|
|
Analog Audio Input |
RCA x 8 (10KΩ), 3 Vp-p (Max) |
|
|
Analog Audio Output |
RCA x 4 (10KΩ), 3 Vp-p (Max) |
|
|
Power Supply |
5V DC 1000mA |
|
|
Power Consumption |
500mA (Max) |
|
|
Dimensions (mm) |
253 × 145 × 40 |
|
|
Weight (g) |
855 |
|

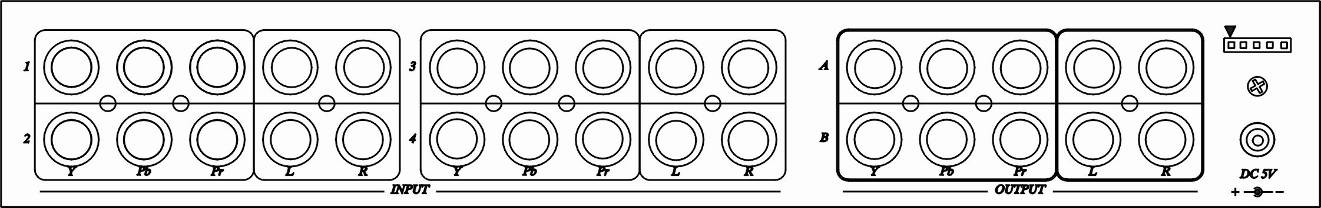

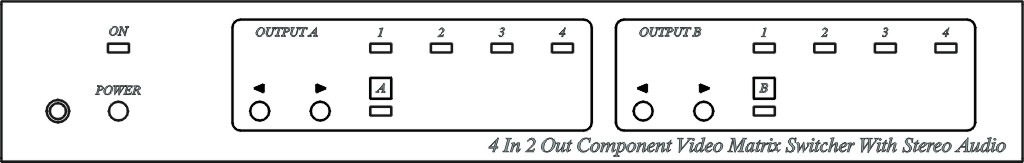

Front and Back Panel View
