4 Input 2 Output Component Video Switcher with Stereo Audio MS-YS04A
Model: MS-YS04A
- HDTV Compatible at 480i/480p/720p/1080i/1080p.
- Connect up to 4 A/V sources to two display monitors.
- Expands both stereo audio and video input.
- The switcher box is the ideal for all of devices, offering both high-definition video and audio switching capability.
- IR remote control included.

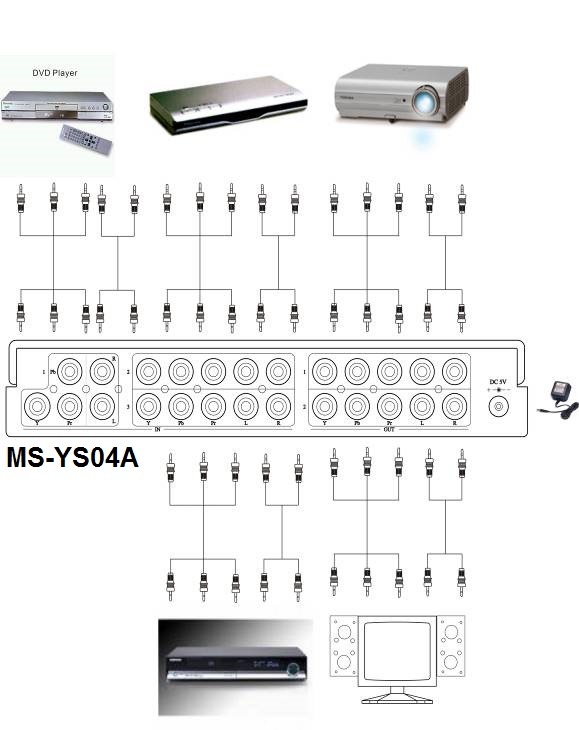

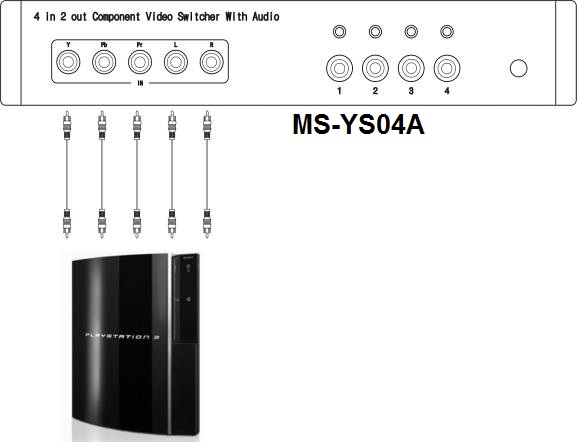

Installation View
|
ITEM NO. |
MS-YS04A |
|
|
Input Resolution |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
|
Video Bandwidth |
400Mhz |
|
|
Video Input (RCA) |
RCA x 12: Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
|
Video Output (RCA) |
RCA x 6: Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
|
Audio Bandwidth |
DC-20Khz |
|
|
Audio Input |
RCA x 8 (10KΩ) |
|
|
Audio Output |
RCA x 4 (10KΩ) |
|
|
Power Supply |
DC 5V 500mA |
|
|
Power Consumption |
250mA (Max) |
|
|
Temperature |
Operation: 0 to 55°C, Storage: -20 to 85°C, Humidity: up to 95% |
|
|
Dimensions (mm) |
225 × 173 × 40 |
|
|
Weight (g) |
908 |
|

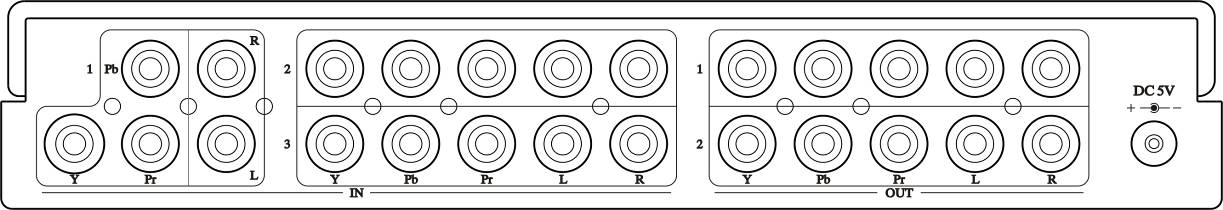

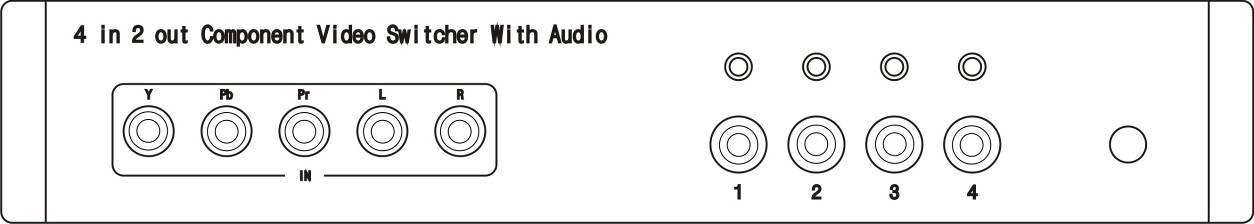

Front and Back Panel View
