HDMI to VGA or Component Video Converter MS-HVY01

Model: MS-HVY01

  • Supports HDMI input and VGA or component with stereo audio output.
  • Allows user to select between VGA or component video output.
  • Supports VGA resolutions up to 1920×1200 or component video up to 1080p.
  • Supports 2 channel audio output (RCA: White (L), Red (R), Stereo Phone Jack 3.5mm).
  • Built in auto memory function.
  • On screen display function.
  • HDMI and DVI compliant.

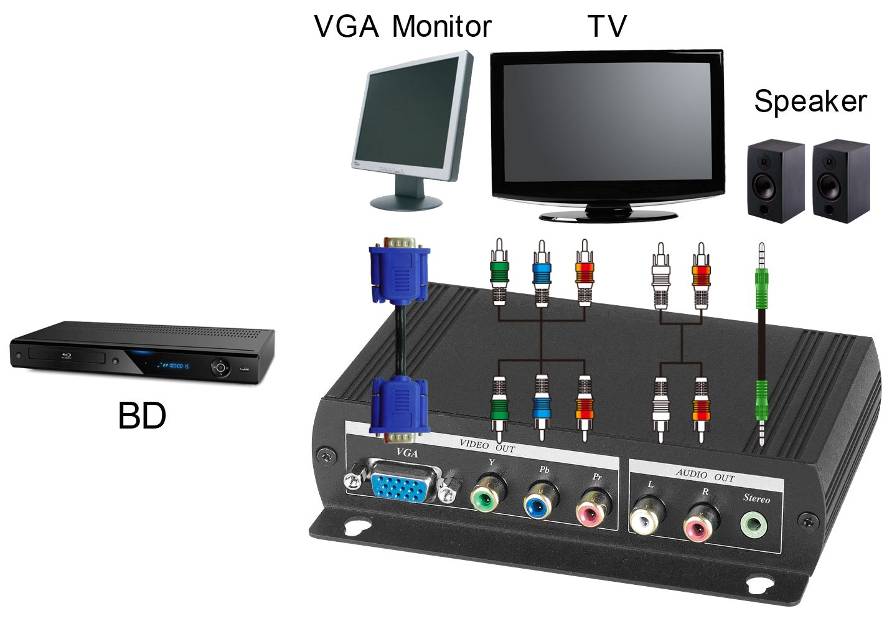

Installation View

ITEM NO.

MS-HVY01

HDMI Input Connector

HDMI Type A 480i/p, 576i/p, 720p, 1080i/p

VGA Output Connector

15-pin Mini D-sub ( High Density)75Ω 0.7 Vp-p

640 x 480p@60, 1280 x 720@60, 1920 x 1080@60, 1920 x 1200@60

YPbPr Output Connector

RCA x 3 ( Y 75Ω 0.7 Vp-p, Pb 75Ω 0.3Vp-p, Pr 75Ω 0.3Vp-p)

480i/p, 576i/p, 720i/p, 1080i/p.

Audio Output Connector

Stereo Phone Jack 3.5mm x 1, RCA x 2

1Vp-p Max. 10KΩ

Function Button

  Button x 2

Power Consumption

750mA (Max)

Power Supply

Switching DC5V 2AMP

Temperature

Operation: 0 to 55ºC, Storage: -20 to 85ºC, Humidity: up to 95%

Dimensions

140 x 95 x 32 (mm)

Weight

300 g

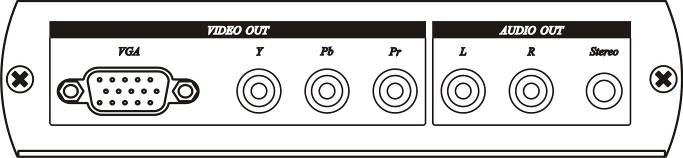

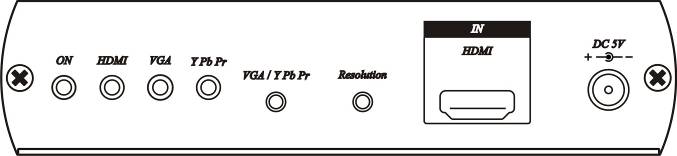

Front and Back Panel View
