1 Input 4 Output Component Video Distribution Amplifier with Digital/Optical Audio MS-YD04D
Model: MS-YD04D
- 1 x Input: Component video and left, right audio.
- 4 x Output: Component video and left, right audio.
- Digital Audio: Coax or Optical option.
- Support 480i, 480p, 576i, 576p, 720p, 1080i, 1080p.
- Video Bandwidth up to 400Mhz.
- Cascade connection several units for larger displays with great picture quality.

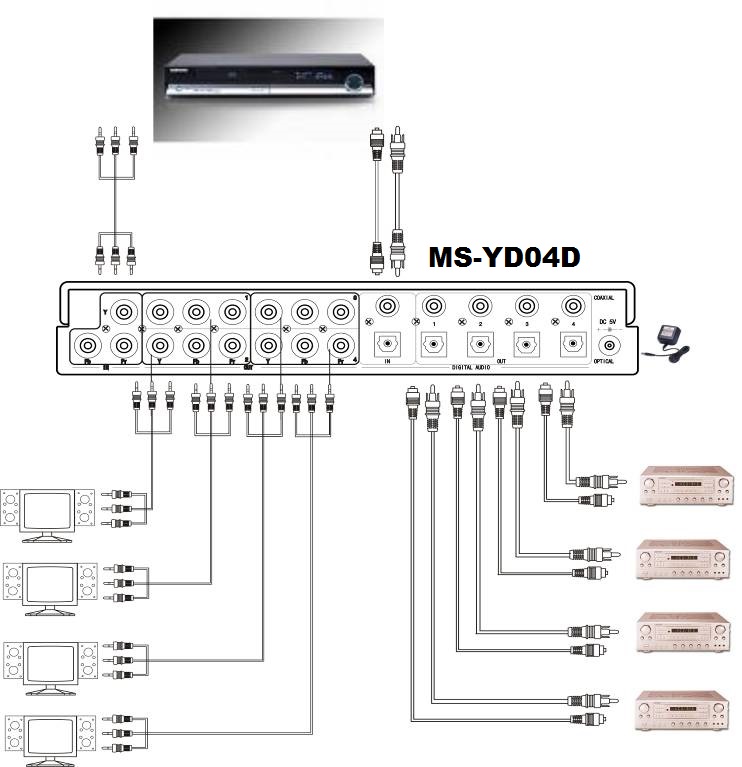

Installation View
|
ITEM NO. |
MS-YD04D |
|
Input Resolution |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p. |
|
Video Bandwidth |
400Mhz |
|
Video Input |
RCA x 3: Y (75Ω，1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
Video Output |
RCA x 12: Y (75Ω, 1.0 Vp-p)，Pb Pr (75Ω, 0.7 Vp-p |
|
Audio Bandwidth |
DC-20Khz |
|
Digital Audio Input |
Coaxial RCA x 1 (75Ω), Optical x 1 |
|
Digital Audio Output |
Coaxial RCA x 4 (75Ω), Optical x 4 |
|
Power Supply |
DC 5V 500mA |
|
Power Consumption |
300mA (Max) |
|
Temperature |
Operation: 0 to 55°C, Storage: -20 to 85°C, Humidity: up to 95% |
|
Dimensions (mm) |
225x167x40 |
|
Weight (g) |
825 |
