Component Video & Stereo/Digital Audio CAT5 Receiver - Built in Skew Corrector MS-YE02DALS
Model: MS-YE02DALS
- Work with MS-YE02DALT CAT5 VGA transmitter as a high quality receiver.

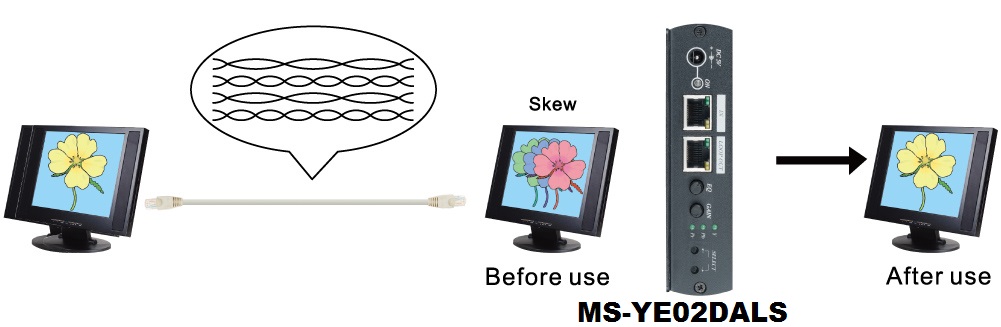

- Built in RGB skew adjustment for the optimum video performance under long cable run.
- It could be daisy chained for another MS-YE02DALS to extended working range over 300 meters and multiple displays.
- Support analog stereo audio and digital audio.
- Digital transmission on analog stereo audio for sound undistorted. (Dolby Digital, AC3, DTS passed through)
- Supports hi resolution up to 1080p.
- Long range transmission up to 300 meters (Max.)
- Built in LPCM 44.1K / 48K 16Bit stereo audio decode function, digital & analog audio could be output simultaneously.
- Support Dolby Digital (AC3) & DTS digital output (pass through).

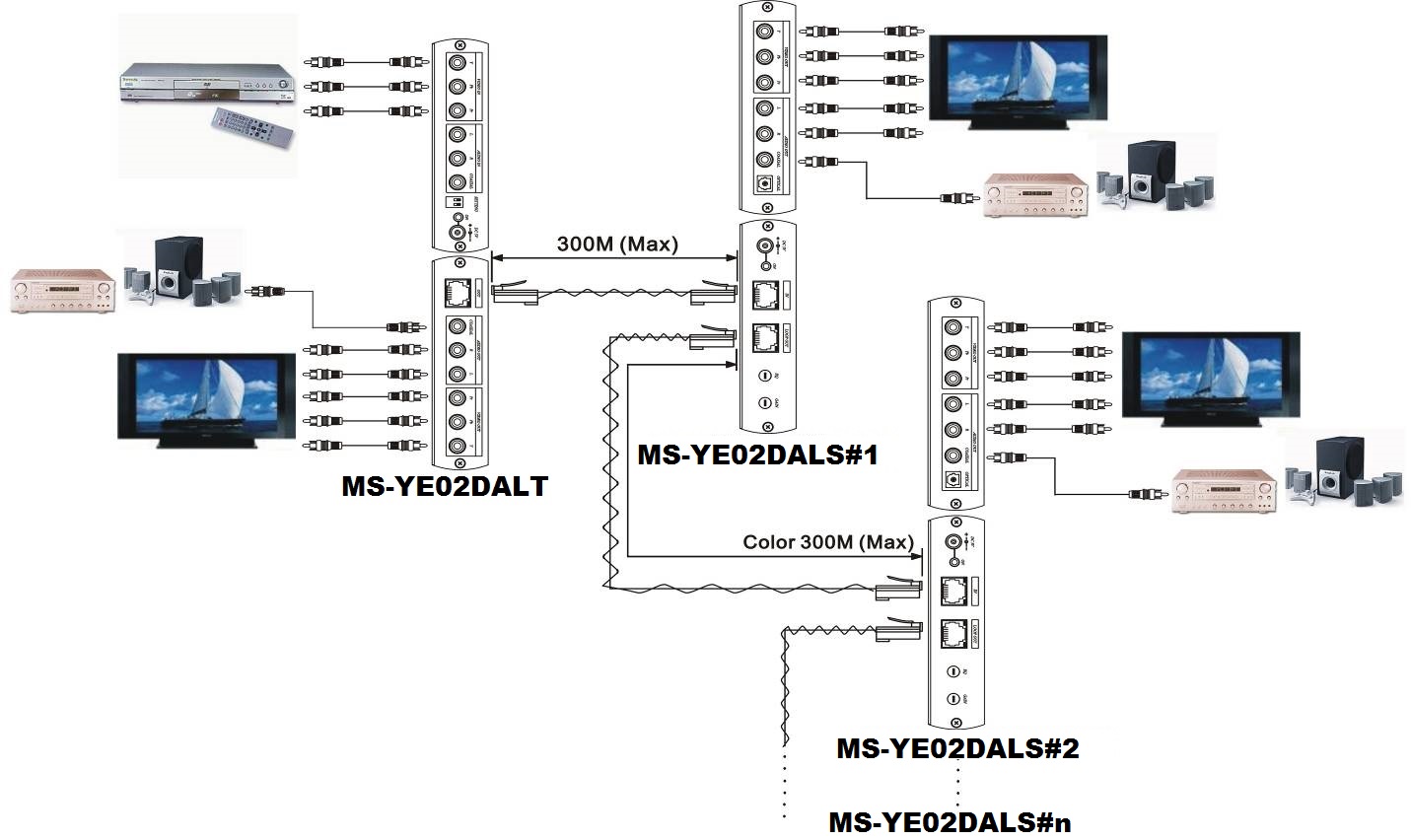

Installation View
|
ITEM NO. |
MS-YE02DALS |
|
Resolution |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
Video Bandwidth |
122Mhz (-3dB) |
|
Audio Bandwidth |
20-20KHz (-3dB) |
|
Video Output |
RCA x 3: Y (75Ω，1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
Audio Output |
Analog audio output: RCA x 2 (10KΩ), 3 Vp-p (Max) Digital Audio output: Coaxial RCA x 1 (75Ω), Optical x 1 |
|
Skew adjustment |
0 – 62ns ( 2ns Step ), skew button x 2 |
|
Link Connector |
RJ45 x 1 |
|
Loop output Connector |
RJ45 x 1 |
|
Max Distance |
Up to 300M (1000 feet) |
|
Power Supply |
5V DC 2000mA |
|
Power Consumption |
1000mA (Max) |
|
Dimensions (mm) |
125 x 95 x 30 |
|
Weight (g) |
280 |

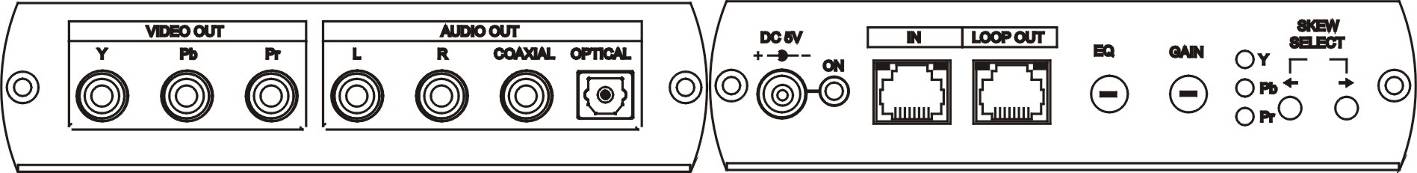

Panel View
