Component Video & Stereo/Digital Audio CAT5 Receiver - Chainable Function MS-YE02DALR
Model: MS-YE02DALR
- Work with MS-YE02DALT as receiver for extra remote component Video display equipment.
- It could be daisy chained for another MS-YE02DALR to extended working range over 300 meters and multiple displays.
- Built in equalization, gain adjustment.
- Supports up to 1080p.
- Built in LPCM 44.1K / 48K 16Bit stereo audio decode function, digital & analog audio could be output simultaneously.
- Support Dolby Digital (AC3) & DTS digital output (pass through).

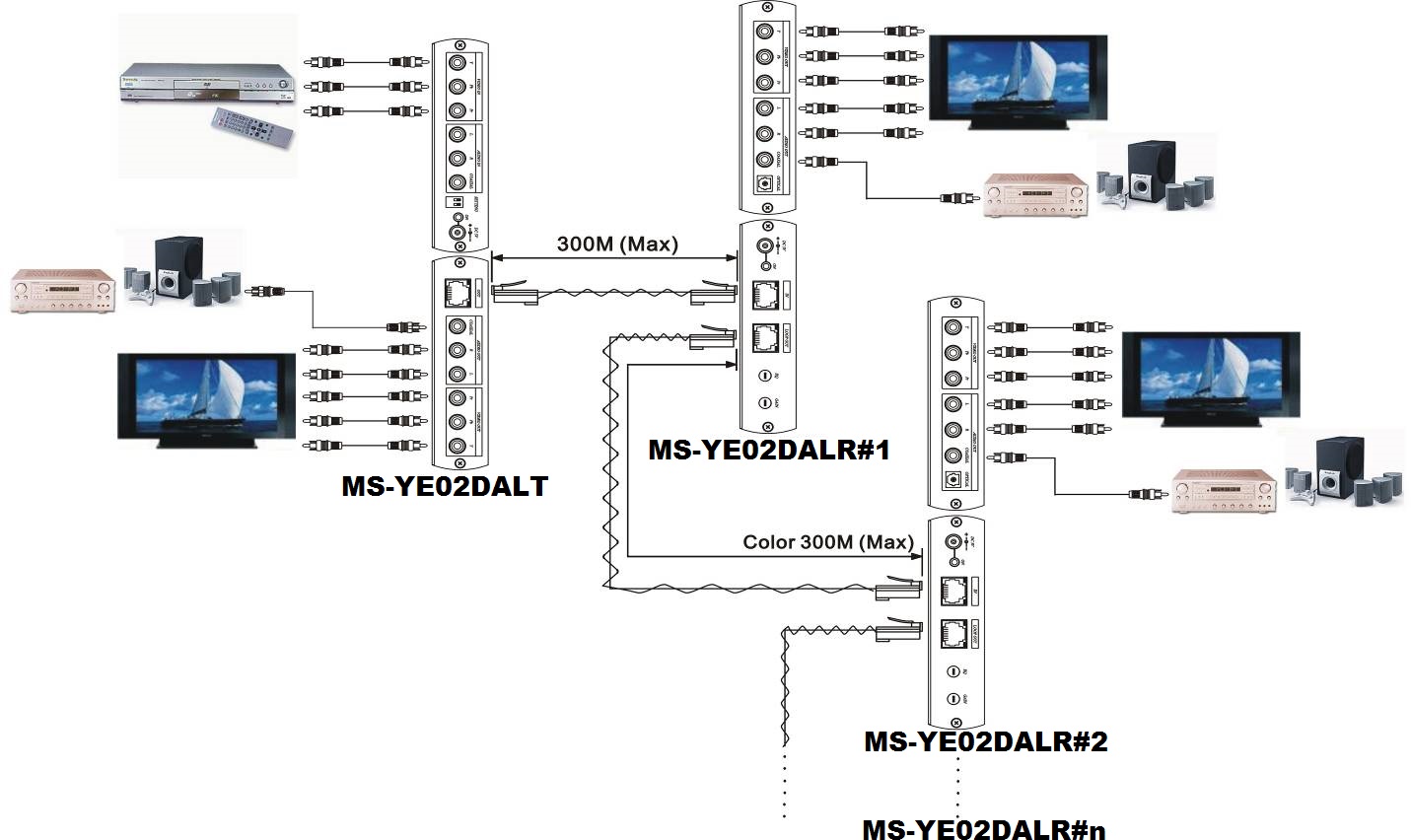

Installation View
|
ITEM NO. |
MS-YE02DALR |
|
Resolution |
Up to 1080p |
|
Video Bandwidth |
150Mhz-3dB |
|
Video Output |
RCA x 3: Y (75Ω, 1.0 Vp-p), Pb Pr (75Ω, 0.7 Vp-p) |
|
Analog Audio Output |
RCA x 2 (10KΩ), 3 Vp-p (Max) |
|
Digital Audio Output |
Coaxial RCA x 1 (75Ω), Optical x 1 |
|
Link Connector |
RJ45 x 1 |
|
Loop output Connector |
RJ45 x 1 |
|
Max Distance |
Up to 300M (1000 feet) |
|
Power Supply |
5V DC 2000mA |
|
Power Consumption |
800mA (Max) |
|
Dimensions (mm) |
125 x 95 x 30 |
|
Weight (g) |
265 |

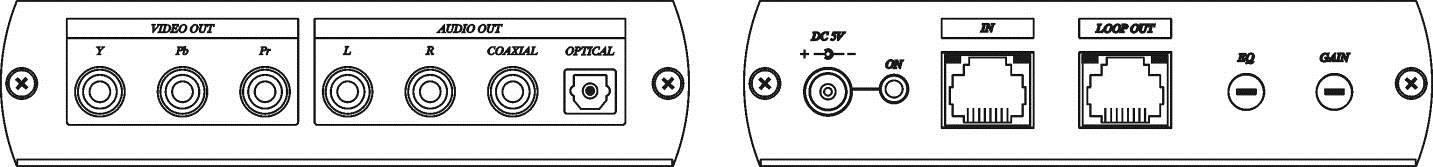

Front and Rear Panel View
